Art 31258

€ 1,095.83

za kos

Dodatna oprema Deli

Adattabile a

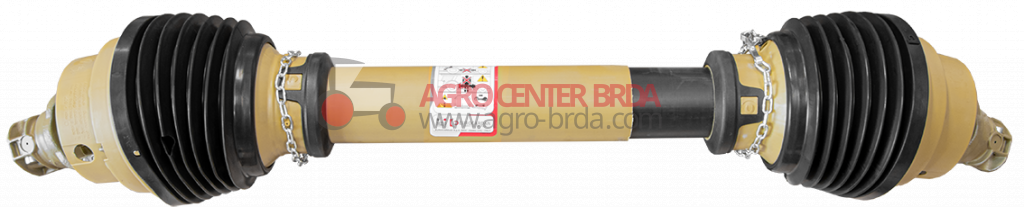

HOMOKINETIC PTO SHAFTS WITH "CE" CERTIFICATION
Category 8

Min length 1200 mm

Opis

"CE" Type approved
The end-forks have a safety-quick coupling

Podatki

Coupling - Tractor side Wide angle 1"3/8 - Z.6

kategorija kardana 8

prenosna moč pri 540 vrt / min 95 CV

prenosna moč pri 1000 vrt / min 150 CV

Coupling - Implement side Wide angle 1"3/8 - Z.6

Cross - mm

Power transmitted at 540 rpm 95 CV

Power transmitted at 1000 rpm 150 CV

Power rating 540 rpm (10°) 53 kW - 71 CV

Torque 540 rpm (10°) 945 Nm

Power rating 1000 rpm (5°) 82 kW - 110 CV

Torque 1000 rpm (5°) 785 Nm

Length of closed cardan shaft 1200 mm

Category 8

Profile Triangular

Min length 1200 mm

neto teža 30 kg

Sorodni članki

SPECIAL GREASE FOR CARDAN JOINTS

Dodatna oprema

Izdelek	Datum	Nakup
31734 1" 3/8 - Z6 fork coupling	Figure reference 1 Figure reference 1 PTO shaft category 8 shaft type 2580 figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/8 - Z.21 Coupling 1"3/8 - Z.21 Sphere diameter 30 mm RIF 1 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm net weight 2.46 kg	€ 120.84 za kos - +
31735 1" 3/4 - Z6 fork coupling	Figure reference 1 Figure reference 1 PTO shaft category 8 shaft type 2580 figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/4 - Z.6 Coupling 1"3/4 - Z.6 Sphere diameter 30 mm RIF 1 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm net weight 3.2 kg	€ 120.84 za kos - +
31736 1" 3/4 - Z20 fork coupling	PTO shaft category 8 Figure reference 1 Figure reference 1 shaft type 2580 figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/4 - Z.20 Coupling 1"3/4 - Z.20 Sphere diameter 30 mm RIF 1 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm net weight 3.18 kg	€ 120.84 za kos - +
31758 forcel. grandang.NUOVO tipo 6 1"3/8	Figure reference 1a Figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/8 - Z.6 Coupling 1"3/8 - Z.6 Sphere diameter 30 mm RIF 1a - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm neto teža 2.49 kg	€ 122.63 za kos - +
31759 forcel. grandang.NUOVO tipo 6 1"3/8	Figure reference 1a Figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/8 - Z.21 Coupling 1"3/8 - Z.21 Sphere diameter 30 mm RIF 1a - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm neto teža 2.46 kg	€ 120.84 za kos - +
31760 forcel. grandang.NUOVO tipo 6 1"3/8	Figure reference 1a Figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/4 - Z.6 Coupling 1"3/4 - Z.6 Sphere diameter 30 mm RIF 1a - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm neto teža 3.2 kg	€ 128.63 za kos - +
31761 forcel. grandang.NUOVO tipo 6 1"3/8	Figure reference 1a Figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type WALTERSCHEID Type 2580 PTO cardan type EUROCARDAN PLUS Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/4 - Z.20 Coupling 1"3/4 - Z.20 Sphere diameter 30 mm RIF 1a - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm neto teža 3.18 kg	€ 128.63 za kos - +

Deli

Izdelek	Datum	Nakup
31264 Protection	kategorija kardana 8 Figure reference 5 referenčna figura 5 PTO cardan type EUROCARDAN Category 8 RIF 5 TCE Category 8 - Sphere Ø 30 mm neto teža 1 kg	€ 55.85 za kos - +
31269 WIDE ANGLE JOINTS (EUROCARDAN)	Pipe profile Triangular 54x4 mm kategorija kardana 8 PTO cardan type EUROCARDAN Category 8 profil hitrega priklopa 1" 3/8 Z6 Quick coupling profile 1"3/8 - Z.6 Quick coupling 1"3/8 - Z.6 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm PTO shaft category Category 8 Tube dimensions Triangular 54x4 mm Tube Internal - Category 8 Tube Internal - Category 8 neto teža 14.6 kg	€ 461.16 za kos - +
31270 WIDE ANGLE JOINTS (EUROCARDAN)	Pipe profile Triangular 63x4 mm kategorija kardana 8 PTO cardan type EUROCARDAN Category 8 profil hitrega priklopa 1" 3/8 Z6 Quick coupling profile 1"3/8 - Z.6 Quick coupling 1"3/8 - Z.6 Cross 34.9x88.8 - 34.9x106 mm Cross 34.9x88.8 - 34.9x106 mm PTO shaft category Category 8 Tube dimensions Triangular 63x4 mm Tube Outer - Category 8 Tube Outer - Category 8 neto teža 14.7 kg	€ 461.16 za kos
31605 RILSAN HOSES FOR C.V. - 1500 mm	Category Category 8 kategorija kardana 8 c 54 mm s 4 mm dolžina 1500 mm Length 1500 mm Height - C 54 mm Thickness - S 4 mm Type Internal - Category 8 - 54x4 mm neto teža 7.64 kg	€ 175.85 za kos - +
31606 RILSAN HOSES FOR C.V. - 1500 mm	Category Category 8 kategorija kardana 8 b 63 mm s1 4 mm dolžina 1500 mm Length 1500 mm Height - B 63 mm Thickness - S1 4 mm Type Outer - Category 8 - 63x4 mm neto teža 8.41 kg	€ 110.12 za kos - +
31733 1" 3/8 - Z6 fork coupling	Figure reference 1 PTO shaft category 8 shaft type 2580 figure reference 1a PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Coupling 1"3/8 - Z.6 Sphere diameter 30 mm RIF 1 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm net weight 2.49 kg	€ 118.67 za kos - +
31737 Complete cross joint	Figure reference 2 PTO shaft category 2 dimensions 34,9x88,8 34,9x106 mm figure reference 2580 PTO cardan type EUROCARDAN Category 8 PTO cardan type WALTERSCHEID Tipo 2580 Dimensions 34.9x88.8 - 34.9x106 mm RIF 2 TCE Category 8 - Sphere Ø 30 mm TCW Type 2580 - Sphere Ø 30 mm net weight 0.9 kg	€ 44.23 za kos - +
31738 corpo centrale per omocinet. tipo 8	Figure reference 3 PTO cardan type EUROCARDAN Category 8 PTO cardan type EUROCARDAN PLUS Category 8 Cross 34.9x88.8 - 34.9x106 mm Sphere diameter 30 mm RIF 3 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm TCEP Category 8 - Sphere Ø 30 mm neto teža 7.44 kg	€ 214.39 za kos - +
31739 forcel. grandang.NUOVO tipo 8 T.EST	Figure reference 4 PTO cardan type EUROCARDAN Category 8 Cross 34.9x88.8 - 34.9x106 mm Profile 63x4 mm Sphere diameter 30 mm RIF 4 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm net weight 2.792 kg	€ 94.94 za kos - +
31740 forcel. grandang.NUOVO tipo 8 T.INT	Figure reference 4 PTO cardan type EUROCARDAN Category 8 Cross 34.9x88.8 - 34.9x106 mm Profile 54x4 mm Sphere diameter 30 mm RIF 4 - Sphere Ø 30 mm TCE Category 8 - Sphere Ø 30 mm net weight 2.92 kg	€ 93.55 za kos - +
