Art 37131

€ 315.73

per unit

Adaptable to

Rear radar kit with 7" video, camera, and sensors

kit video 7" c/retro e sensori

Description

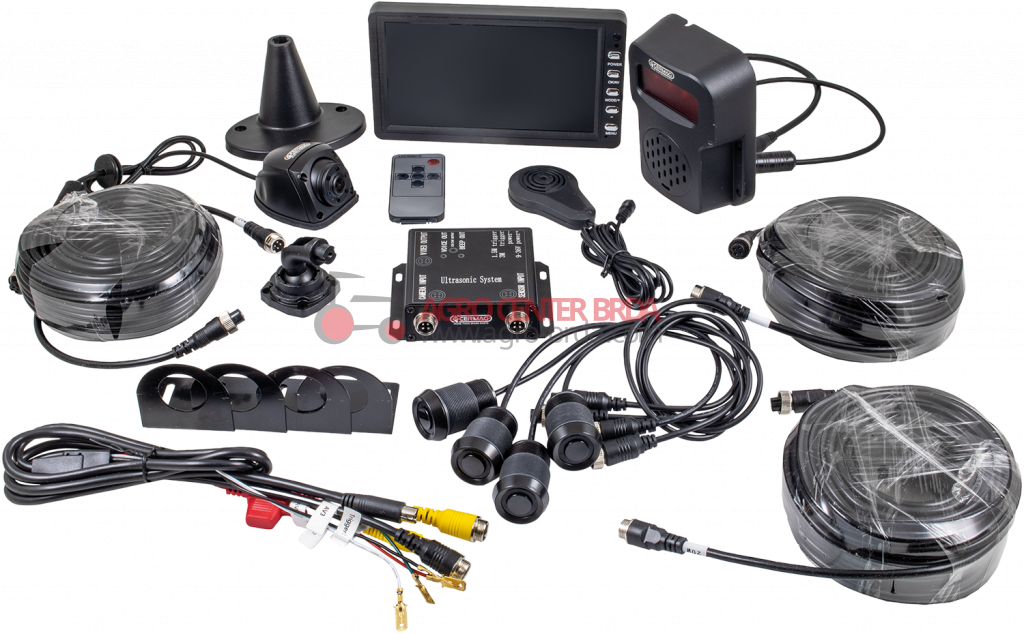

KIT CONSISTS OF:
• A 7” 182×120×23mm color monitor with 1024x600 pxl resolution
• A 65x75x58mm camera with 720 pxl resolution and 110° angle, waterproof, dustproof, shockproof, anti-corrosion, highly fireproof.
• A 12 - 24 Volt radar control unit with sensor input and audio-video output.
• Four easy-to-mount external Ø 28 mm radar sensors with object detection sensitivity starting from 5 m away at a 70° angle.
• A metal sound and light alarm device.

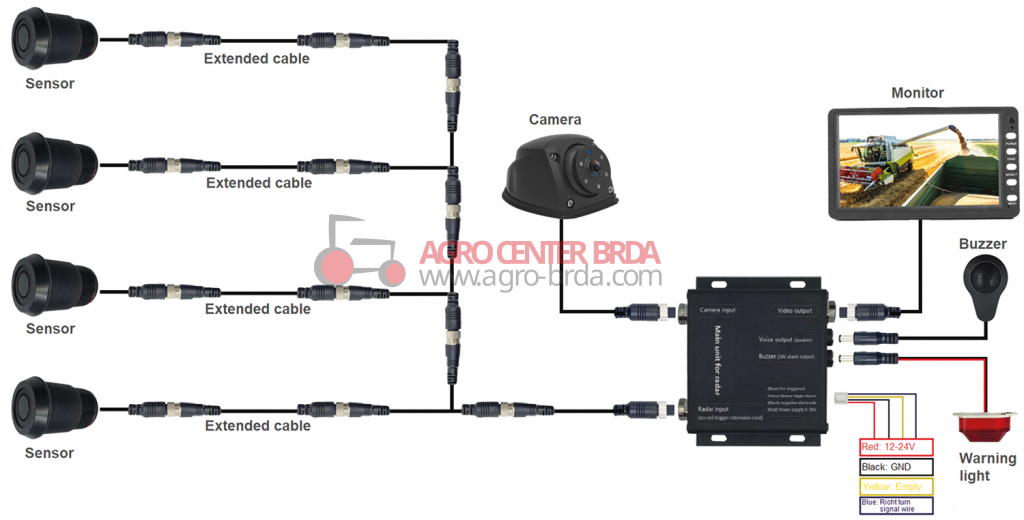

• Sensor/control unit/monitor/camera/alarm device connection cables.
• Camera angle is 110 degree / Parking sensor is 70 deegree

ATTENTION:

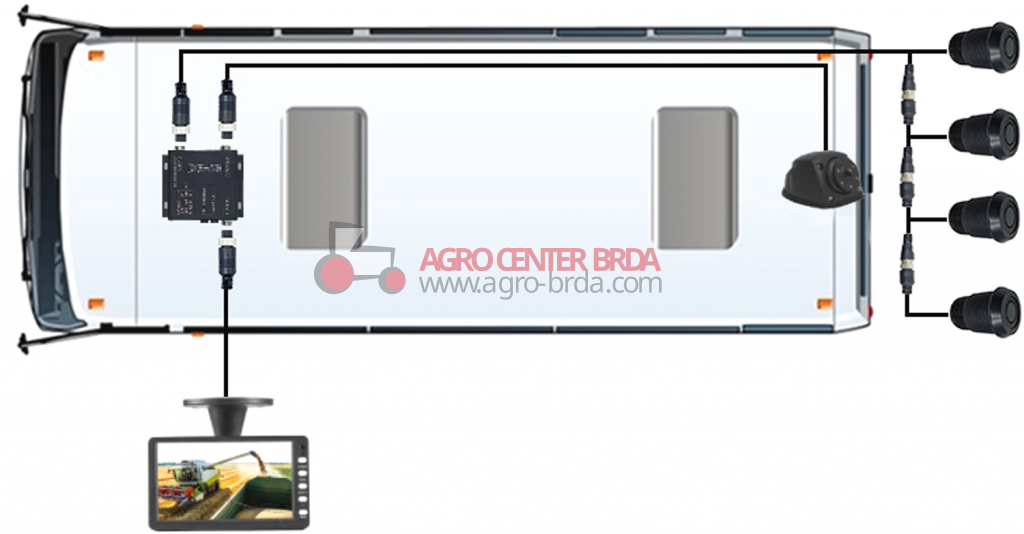

- For the assembly diagram, see attached document

Data

net weight 2.5 kg

Documents

Assembly diagram

Type: PDF Dimension: 0 bytes
