Art 61844

€ 423.57
per unit
-
+
Adaptable to

Hydraulic foot with double effect block valve
Flow rate 100 bar 1950 kg
Flow rate 150 bar 2650 kg

piedino idraulico 90x90 c.400

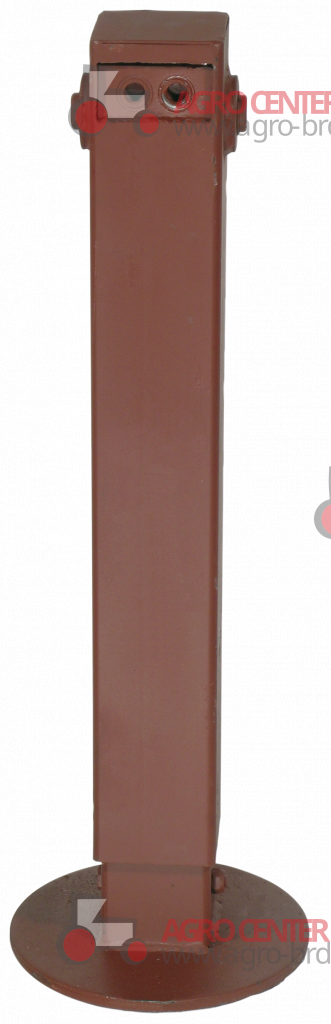

Hydraulic foot with double effect block valve
Hydraulic foot with double effect block valve

Caratteristiche Tecniche

Complete with 3/8" dual effect driven lock valve.
Without hose kit and stripped.

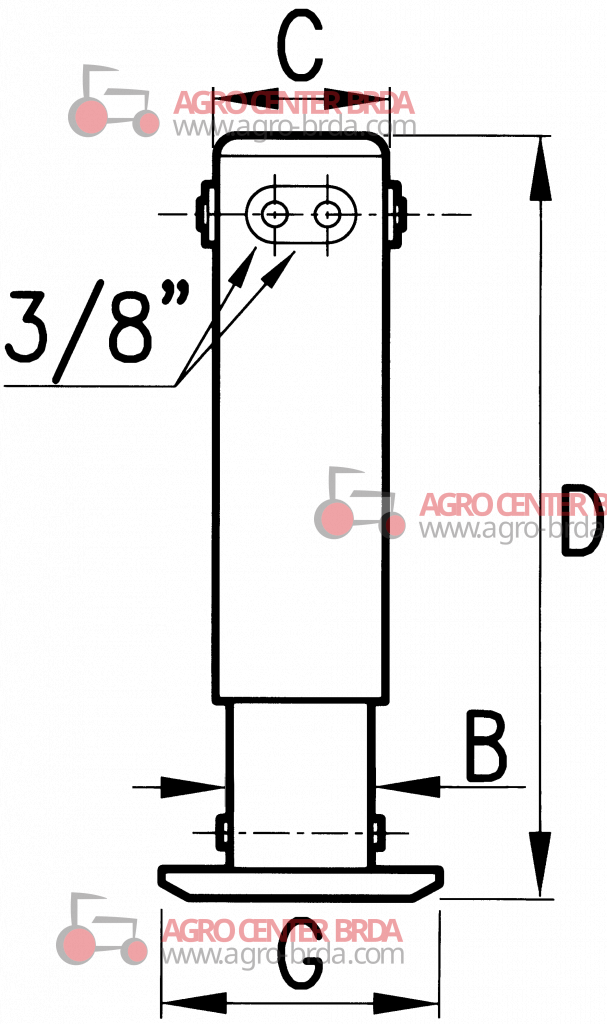

Data

Square - C 90x90 mm
Square - B 80x80 mm
Height - D 695 mm
Thickness 4 mm
Diameter - G 220 mm
Travel 400 mm
Flow rate 100 bar 1950 kg
Flow rate 150 bar 2650 kg
net weight 35 kg
Characteristics: Complete with 3/8" dual effect driven lock valve. Without hose kit and stripped.…
