Art 61937

€ 5.66
per unit
-
+
Adaptable to

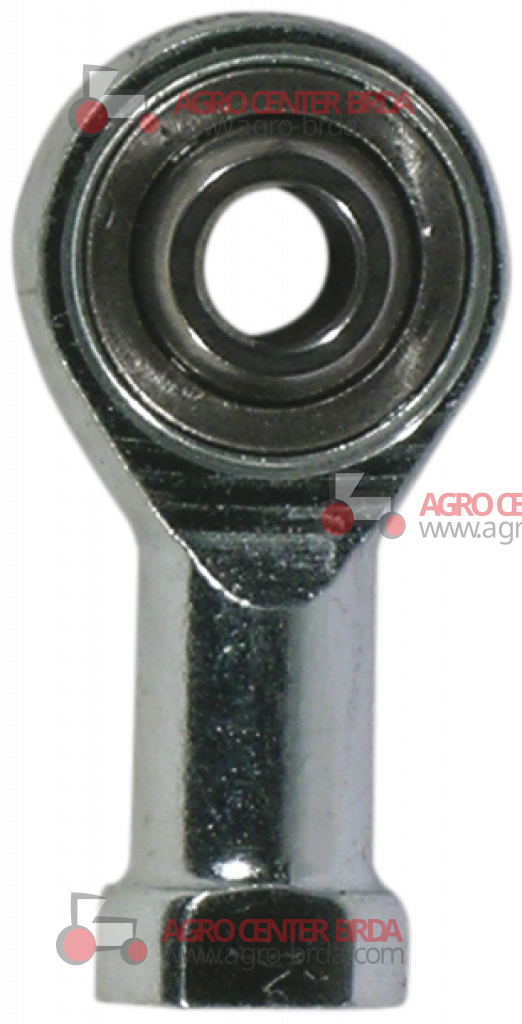

SELF-LUBRICATING RODS ENDS IN STEEL-STEEL RH THREAD

teste snodo d.10 autolubrific filDX
SELF-LUBRICATING RODS ENDS IN STEEL-STEEL RH THREAD

Description

Self-lubricating, maintenance-free.
Reduced play increase during operation.
Enduring, limited torque values constant over time.
Can function when immersed, or in the presence of oil.
Operating temperature: -30° + 150°.

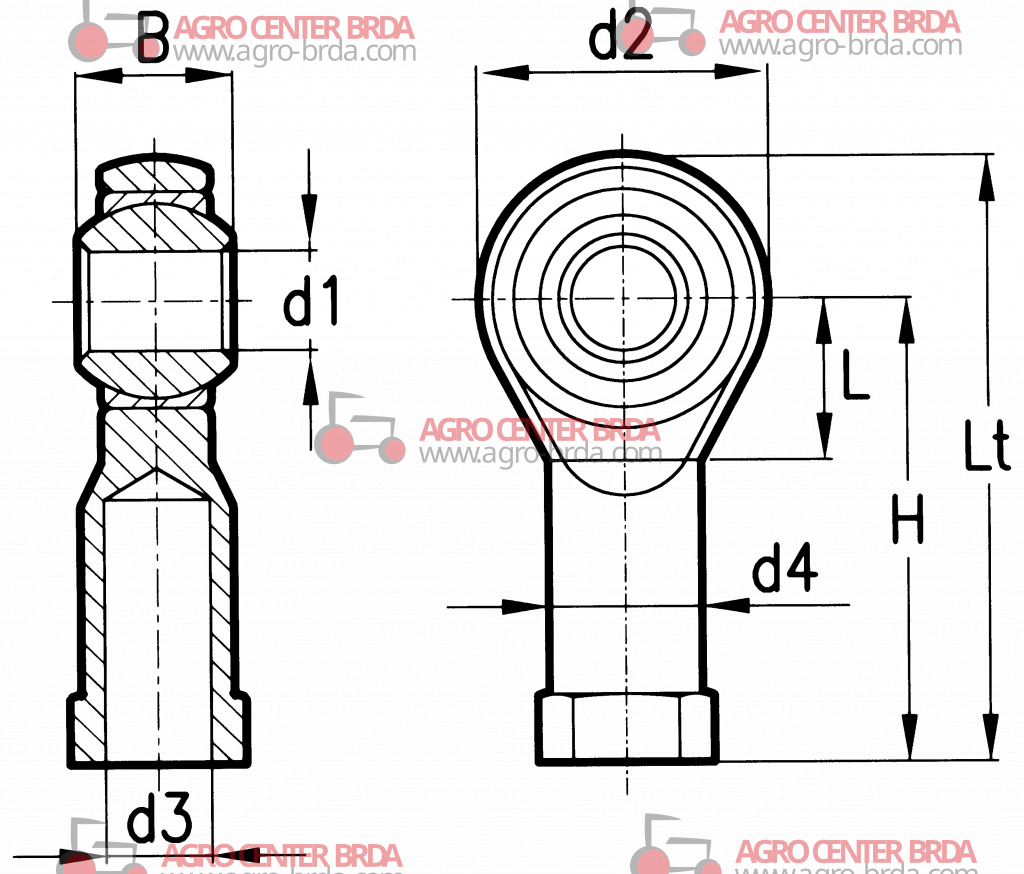

Data

d1 10 mm
d2 28 mm
d3 M 10 mm
d4 15 mm
b 14 mm
l 15 mm
h 43 mm
It 57 mm
static load 1400 daN
net weight 0.076 kg
Description: Self-lubricating, maintenance-free. Reduced play increase during operation. Enduring, limited torque…
