Art 64740

€ 0.92

per unit

Adaptable to

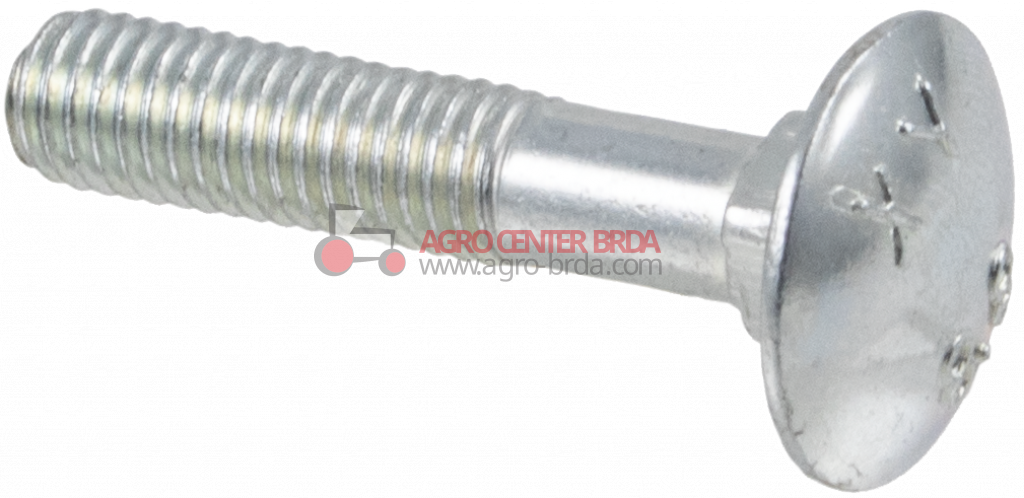

Round head screw with square under head
thread M12x30

thread M12x30

l 60 mm

vite TTQST UNI5731 8.8 M12x60ZB(10)

Description

- DIN: 603
- UNI: 5731
- ISO: 8677
- MATERIAL: white zinc plated steel.
- MECHANICAL PROPERTIES: according to ISO 898-1
- CLASS: 8.8
- TOLLERANCES: according to ISO 4759-1 CAT C

Caratteristiche Tecniche

ISO metric coarse thread

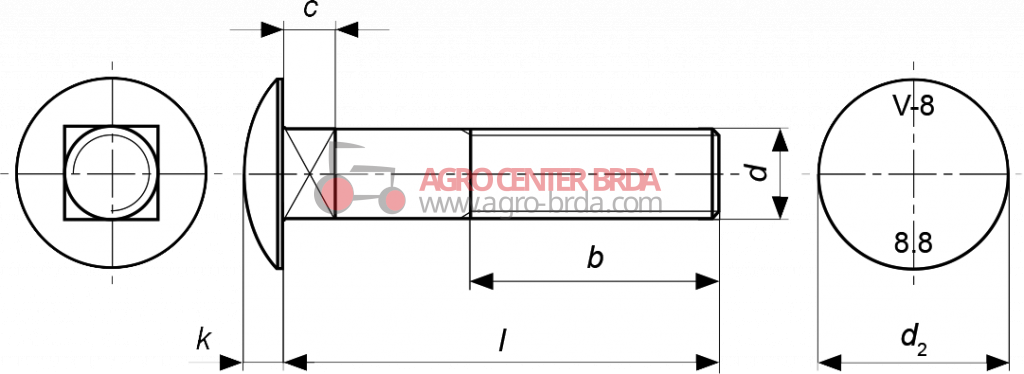

Data

c 8 mm

Screw length - l 60 mm

k 6,95 mm

Thread length - b 30 mm

d2 max 30,65 mm

Head diameter - d2 30.65 mm

d M12

Head height - k 6.95 mm

b 30 mm

Under head height - c 8 mm

thread M12x30

Threading - d M12

thread M12x30

l 60 mm

net weight 0.07 kg
