Art 26519

€ 31.89
per unit
Adaptable to

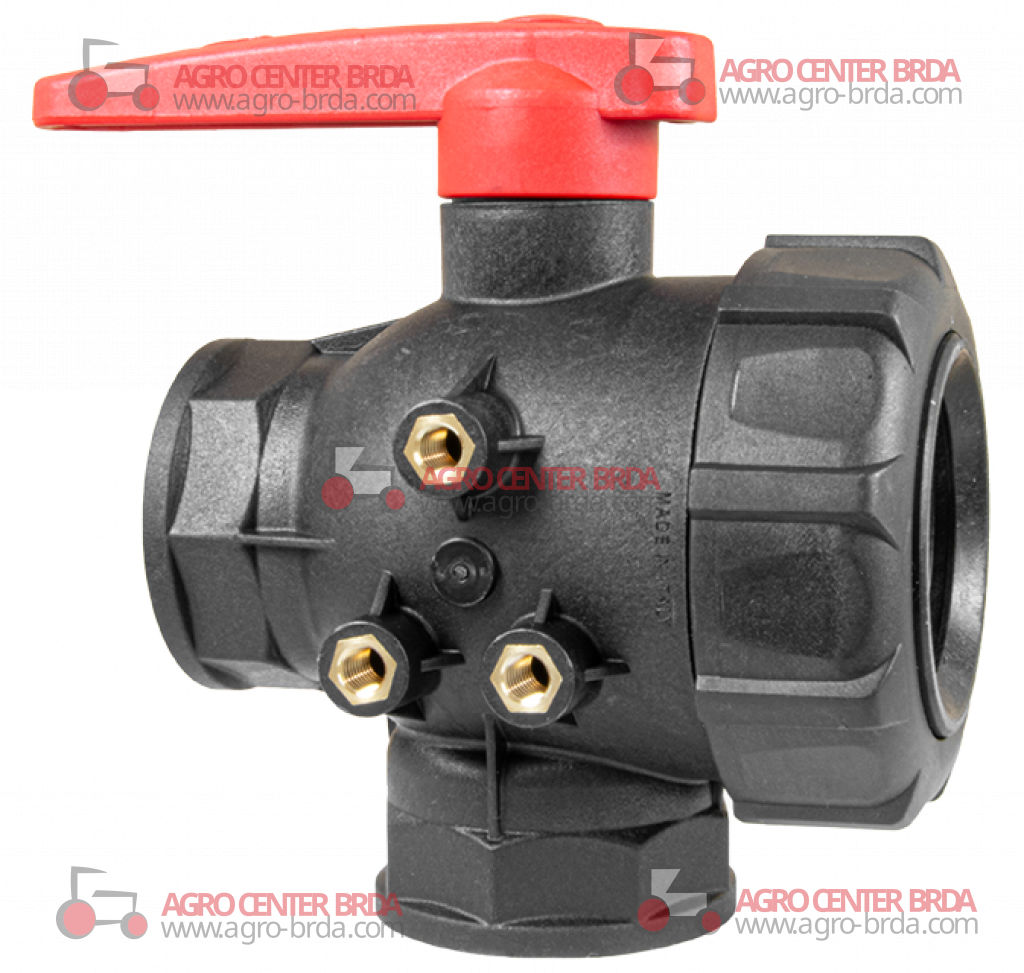

3-way ball valve standard

valvola a sfera 3 vie G 1"1/2
3-way ball valve standard
3-way ball valve standard

Data

g G 1" 1/2 BSP
dn 40 mm
pn 10 bar
a 77 mm
b 61 mm
c 160 mm
d 80 mm
e 48 mm
e1 50,5 mm
h 143,5 mm
l 28 mm
p 31 mm
t 128,5 mm
type 2
x 27 mm
y 34 mm
z M8
net weight 0.5 kg
