Art 26524

€ 28.67
per unit
-
+
Adaptable to

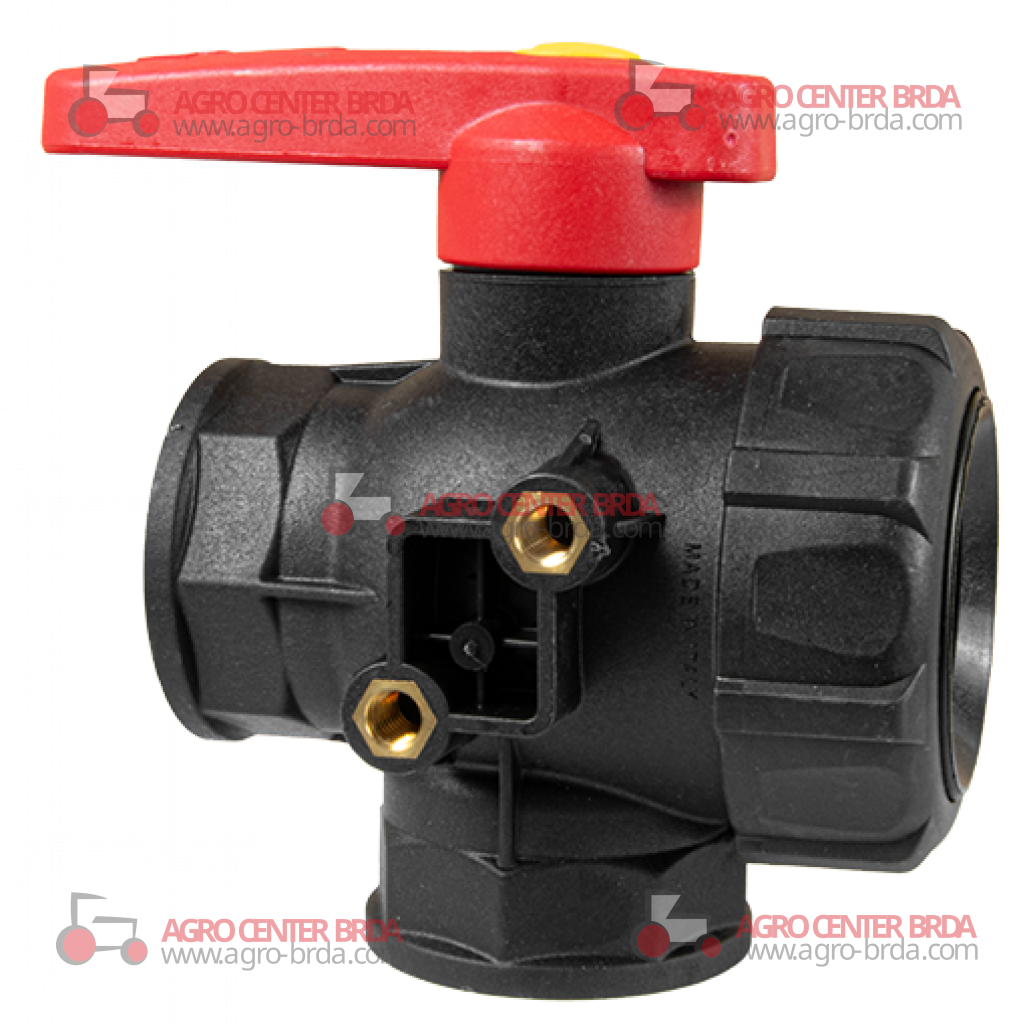

3-way ball valve with continuous flow

valv.a sfera 3vie G1"1/4 flusso c.
3-way ball valve with continuous flow
3-way ball valve with continuous flow

Data

g G 1" 1/4 BSP
dn 33 mm
pn 10 bar
a 72 mm
b 50,5 mm
c 160 mm
d 80 mm
e 40 mm
e1 43 mm
h 125,5 mm
l 25 mm
p 29,5 mm
t 108,5 mm
type 1
x 20 mm
y 25 mm
z M8
net weight 0.314 kg
