Art 64752

€ 0.26

za kos

Adattabile a

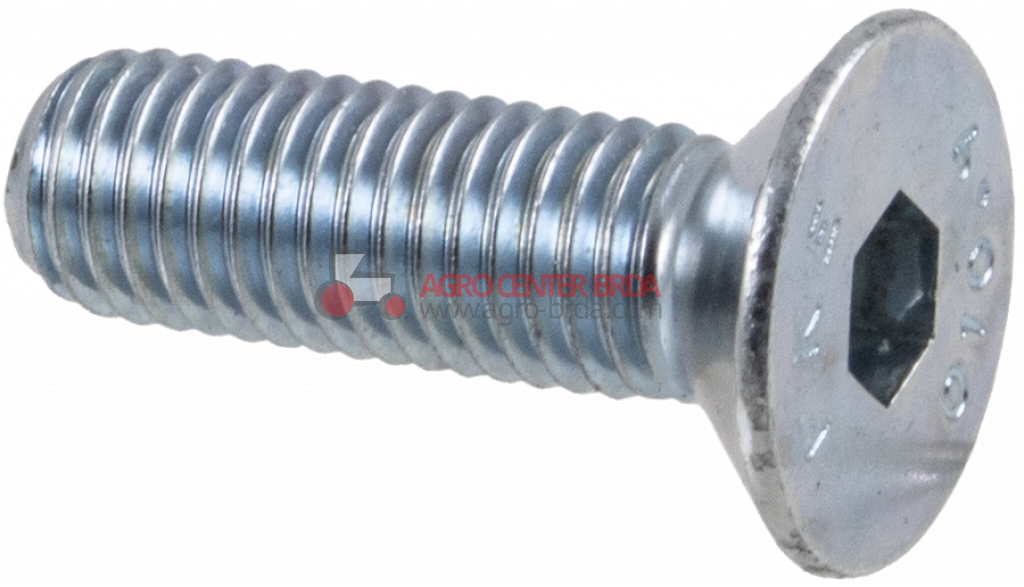

vite TSEI UNI5933 10.9 M8X40 ZB(10)
thread M8x1,25

l 40 mm

Thread M8x1.25x40 mm

Opis

- DIN: 7991-A
- UNI: EX 5933
- ISO: 10642
- MATERIAL: white zinc plated steel.
- MECHANICAL PROPERTIES: according to ISO 898-1
- CLASS: 10.9
- TOLLERANCES: according to ISO 4759-1 CAT A

Podatki

s 5 mm

Screw length - l 40 mm

dk max 16 mm

Hexagon - s 5 mm

k max 4,4 mm

Head diameter - dk 16 mm

d M8

Head height - k 4.4 mm

p 1,25 mm

Threading - d M8

thread M8x1,25

Thread pitch - p 1.25 mm

l 40 mm

Thread M8x1.25x40 mm

net weight 0.015 kg
